GFCI Line vs Load Terminals Explained (Plus AFCI vs GFCI)
— Category: Electrical Safety Tips
The LINE terminals on a GFCI outlet connect to the power source coming from your panel. The LOAD terminals connect to additional outlets downstream that you want the GFCI to protect. Wire LINE wrong and the outlet won't work at all. Wire LOAD wrong and you'll lose GFCI protection on everything fed from that device — and your house may still pass a visual inspection even though it's unsafe.
That's the short answer. Here's everything else you need to know.
What LINE and LOAD Actually Mean
Every GFCI outlet — whether it's a Leviton GFCR20, a Hubbell GF20LA, or a Pass & Seymour 1597-W — has two pairs of terminals under that yellow tape on the back. LINE is where incoming power lands. LOAD is where outgoing power leaves to feed other devices on the same circuit.
Think of it directionally. Power flows from your breaker panel, through the wire in the wall, into the LINE terminals, through the GFCI's internal circuitry, out the LOAD terminals, and to the next outlet down the line.
The GFCI's job is to monitor the difference between current flowing out on the hot wire and returning on the neutral. If that difference exceeds about 5 milliamps — meaning current is leaking somewhere it shouldn't, like through a person standing in a puddle — the GFCI trips in 1/40th of a second. That's fast enough to prevent electrocution, though not fast enough to prevent a shock.
When to Actually Use the LOAD Terminals
Here's where most homeowners go wrong: the LOAD terminals are optional. You don't have to use them. If you have a single GFCI outlet in one location — say, a bathroom counter — you wire both wires (hot to LINE hot, neutral to LINE neutral), cap off the LOAD terminals, and you're done. That outlet is protected.
You only use the LOAD terminals when you want to extend GFCI protection to additional receptacles downstream on the same circuit. Classic example: you have three outlets in a bathroom, only one of which is a GFCI. You put the GFCI outlet closest to the panel, run the next outlet off the LOAD terminals, and now all three outlets are protected. The downstream outlets will read "GFCI Protected" if you test them with a Klein Tools RT210 or similar outlet tester.
This is actually how many older bathrooms and kitchens were wired to code — one GFCI outlet protecting multiple standard outlets downstream. It's still legal and still works, as long as the first device in the chain is wired correctly.
What Happens If You Swap LINE and LOAD
The outlet will often still provide power — which is the dangerous part. Reversed line/load wiring means the GFCI's sensing circuit is monitoring the wrong current path. It may never trip when it should. Some units won't work at all with reversed terminals; the more expensive ones have internal circuitry that detects the reversal and locks out. But a cheap box-store unit wired backward can sit in your wall for years looking perfectly normal while providing zero ground fault protection.

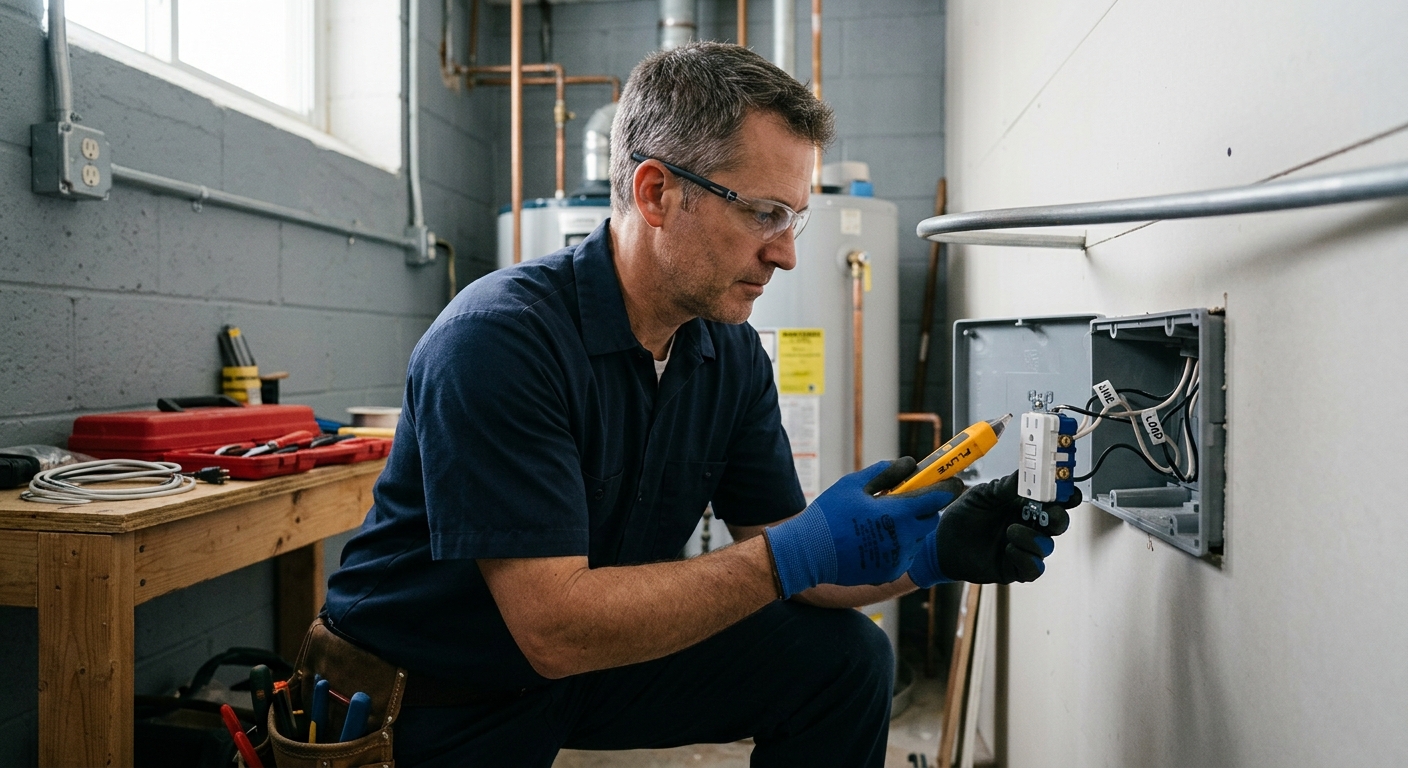

If you've bought a house or done a bathroom renovation and your GFCI won't reset, one of the first things to check is whether the incoming power is actually landed on LINE. Use a non-contact tester like the Fluke 1AC-A1 to verify which wire is hot before you touch anything.
The LOAD Terminal Trap: Daisy-Chaining Problems
Using LOAD terminals to protect downstream outlets sounds efficient, but it creates a failure cascade. When the GFCI at the head of the chain trips — or fails — every outlet on the LOAD side goes dead. This is why you'll get calls from homeowners who say "three of my kitchen outlets stopped working and I can't figure out why." Almost always, a GFCI somewhere upstream tripped or failed. Check every GFCI on the circuit, including ones in other rooms or even the garage.
When you're troubleshooting dead outlets that won't come back on, a tripped GFCI feeding them through LOAD terminals is the most common culprit.
The other trap: GFCI outlets have a lifespan. Leviton rates theirs at 10 years. After that, the internal ground fault sensor can degrade. A GFCI that won't reset — even after pressing the reset button firmly — has likely failed and needs replacement, not troubleshooting.
GFCI vs AFCI: Two Different Threats, Two Different Devices
This is where the load vs line question intersects with a broader one: what protection does your house actually need?
GFCI (Ground Fault Circuit Interrupter) protects against ground faults — current taking an unintended path to ground, usually through a person or water. It's required by the NEC in wet or damp locations: bathrooms, kitchens within 6 feet of a sink, garages, basements, outdoor locations, crawl spaces, and unfinished utility areas. AFCI (Arc Fault Circuit Interrupter) protects against arc faults — intermittent electrical arcing in damaged, loose, or corroded wiring that generates enough heat to ignite insulation or building materials. AFCI doesn't care about current leaking to ground; it's listening for the distinctive electrical "signature" of an arc — a chaotic, high-frequency waveform that normal loads don't produce.The 2020 NEC requires AFCI protection in virtually every living space: bedrooms, living rooms, dining rooms, hallways, closets, sunrooms, recreation rooms, and more. Some jurisdictions are still on the 2017 NEC, which was nearly as broad.
Arc Fault vs GFCI: How Each Device Actually Works
A GFCI uses a differential current transformer. It wraps around both the hot and neutral conductors simultaneously. Under normal conditions, current flowing out on the hot wire equals current returning on the neutral. When there's a ground fault, some current leaks out of the circuit — the transformer detects the imbalance and triggers the trip mechanism. The sensing threshold is 4 to 6 milliamps, per UL 943.
An AFCI breaker — brands like Eaton BRAFCI2 or Square D QO115AFIC — uses a microprocessor that continuously samples the waveform of current on the circuit. Normal loads (motors, dimmers, fluorescent ballasts) produce predictable patterns. Arc faults produce random bursts of high-frequency noise. The processor recognizes the difference and trips the breaker before sustained arcing can start a fire. It's a fundamentally different detection method from what a GFCI does.
This is why you can't substitute one for the other. A GFCI won't catch a frayed wire arcing inside a wall. An AFCI won't protect you from a hair dryer falling into the sink.
Some jurisdictions now require dual-function AFCI/GFCI breakers — like the Eaton BRCAF115 or Leviton N7599-2T — in kitchen and bathroom circuits. These combine both detection mechanisms in a single breaker. They're more expensive (typically $35 to $55 per breaker versus $8 to $12 for a standard breaker), but they satisfy both code requirements at once and eliminate the need for GFCI outlets in those locations.
Where Each Type of Protection Is Required
GFCI protection required (NEC 2020, Article 210.8):• Bathrooms (all receptacles)
• Garages and accessory buildings
• Outdoors
• Crawl spaces
• Unfinished basements
• Kitchen countertop receptacles within 6 feet of a sink
• Boathouses
• Laundry areas
• Within 6 feet of a bathtub or shower stall
• Sump pump receptacles
AFCI protection required (NEC 2020, Article 210.12):• All 15A and 20A, 120V circuits serving dwelling unit areas not already listed (bedrooms, living rooms, dining rooms, hallways, closets, sunrooms, etc.)
In practice, nearly every circuit in a modern home needs one or both. If you're troubleshooting a breaker that keeps tripping and it's an AFCI breaker, that's not necessarily a malfunction — it may be detecting real arcing from a loose wire connection somewhere on the circuit.
Testing and Verifying GFCI Protection
Every GFCI outlet has two buttons: TEST and RESET. Press TEST and the outlet should go dead immediately. Press RESET and it should come back. Do this monthly. If the TEST button doesn't cut power, the GFCI has failed and needs replacement — don't trust it.
For downstream outlets protected via LOAD terminals, use a plug-in outlet tester with a GFCI test function. The Klein Tools RT250 does this. Plug it in, press the GFCI test button on the tester, and the upstream GFCI should trip. If the outlet stays live, it's either not GFCI protected or the LOAD wiring is wrong.
AFCI breakers also have a test button on the face of the breaker. Press it and the breaker should trip. If it doesn't, that's worth investigating before assuming the breaker is faulty.
Combo AFCI/GFCI Devices: Worth the Cost?
For most homeowners doing a kitchen or bathroom remodel, yes. A dual-function breaker at the panel handles both arc fault and ground fault protection for the entire circuit. You can then use standard outlets throughout without worrying about GFCI outlet placement, daisy-chaining, or LOAD terminal wiring mistakes. One device at the panel eliminates the cascade failure problem.
The tradeoff is cost and panel space. A dual-function breaker runs $40 to $60 versus roughly $15 for a GFCI outlet. If you have 10 kitchen circuits, that math adds up. For a single bathroom circuit with three outlets, a GFCI outlet wired correctly on LINE with the downstream outlets running off LOAD is still a valid, code-compliant approach.
One important note: AFCI breakers are sensitive to certain wiring conditions. Long runs, certain motor loads, and even some LED drivers can cause nuisance tripping. If your AFCI breaker trips repeatedly with no obvious fault, checking the wiring and load before assuming the breaker is defective saves you unnecessary replacement costs.
Quick Reference: LINE vs LOAD Wiring Summary
LINE terminals — Always used; connect to the source (power from panel).
LOAD terminals — Optional; only use when protecting downstream outlets.
Reversed line/load — Outlet may work but GFCI protection is compromised or absent.
LOAD chain failure — One tripped or failed GFCI takes out all downstream outlets.
GFCI protects — Ground faults (water + electricity, contact with energized parts).
AFCI protects — Arc faults (damaged wiring, loose connections, fire risk).
Dual-function breakers — Satisfy both requirements from the panel, no GFCI outlets needed.
Get the LINE terminals right every time, understand when LOAD actually helps you, and know which type of protection your circuit actually needs. Those three things cover 90% of GFCI-related mistakes homeowners and contractors make.
